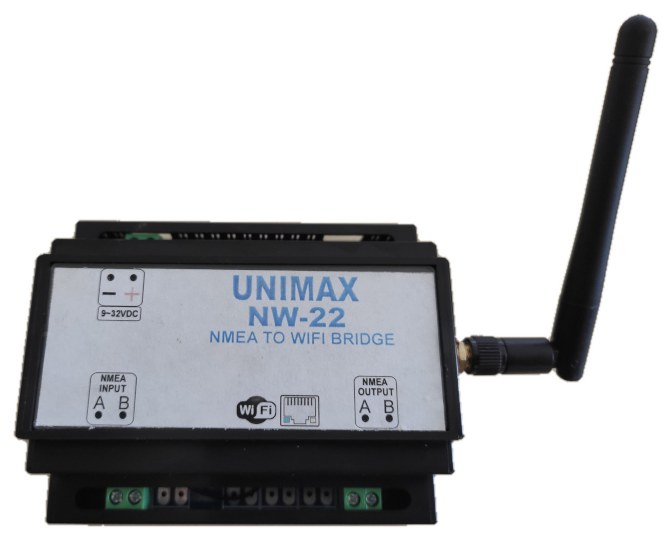

NW-22 NMEA Wifi Bridge – Gateway – Transponder
UNIMAX NW-22 is a smart NMEA to Wifi bridge. It sends every NMEA message it receives to the WiFi devices it is connected to. NMEA Wifi Bridge allows you to see NMEA data such as GPS, AIS in marine software applications. Compatible with many marine software applications.
It can simply be connected to many wireless devices such as PC and smartphone. Supports TCP and UDP protocols. NW-22 creates its own wifi network. You can connect to the device directly or connect it to another network. Also supports ethernet connection optionally.
NMEA input supports 4800, 9600, 38400, 115200 baud rates. NMEA output transmits data at a constant rate (115200bps).
Configuration
To change the wifi bridge’s settings, you need any wifi enabled device with any web browser. IP address, port number, TCP, UDP, SSID options can be easily set up via the web interface.
Technical specifications
| Supply Voltage | – 9-32VDC – Reversed polarity protection |
|---|---|
| Protocol | – NMEA0183 – IEC61162 |
| Input | 1 X 5000V Galvanic isolated |
| Input Baudrate | 4800, 9600, 38400, 115200 selectable |
| Output | 1 X RS422, RS485 |
| Compatibility | Wireless standards: IEEE 802.11N, IEEE 802.11g, IEEE 802.11B |
| Speed | 802.11n up to 150Mbps |
| IP support | Supports TCP and UDP broadcast |
| Security | WPA-PSK/WPA2-PSK, WPA/WPA2 Security mechanism |
| Maximum Transfer Rate | 230400bps |
| Max Connections | >20 |
| Ethernet | Optional |
| Case – Dimensions | ABS DIN Rail Mount Box 105 x 86 x 58 |
