Marine Multi Function NMEA Remote Display
Overview
Experience the next level of marine instrumentation with the brand-new Marine Multi Function NMEA Remote Display from AST Elektronik. Currently in the production phase, this advanced remote display is designed to deliver essential navigation and system data clearly and reliably in all marine environments.
Key Features
- Multi-Function Display: Capable of showing a variety of system parameters such as speed, heading, depth, wind speed, and more, all through standard NMEA protocols.
- Remote Viewing: Engineered for remote installation, letting you monitor critical data from a distance – perfect for external control stations or auxiliary boat areas.
- NMEA Compatibility: Full support for NMEA data interfaces ensures easy integration with existing marine electronics. Whether coming from GPS, depth sensors, wind sensors, or other instruments, this display handles data seamlessly.
- Robust Build: Designed to withstand challenging conditions at sea. Weather-proof casing, glare-resistant display, and durable components ensure long service life and high reliability.
Applications
Ideal for leisure boats, commercial vessels, and yachts, this display provides captains and crew with rapid access to performance metrics and safety indicators. Use it at helm stations, in cabins, or even on flybridge consoles.
At the moment, the Marine Multi Function NMEA Remote Display is still in production. AST Elektronik is finalizing designs and preparing for full deployment. Interested customers are welcome to contact us for more details, estimated delivery dates, and customization possibilities.
Technical specifications
| Supply Voltage | 9-32VDC, 12 Watt |
|---|---|

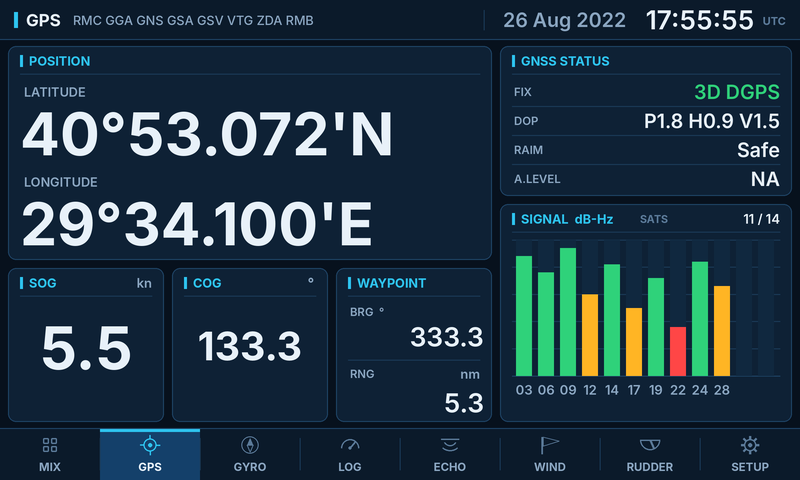

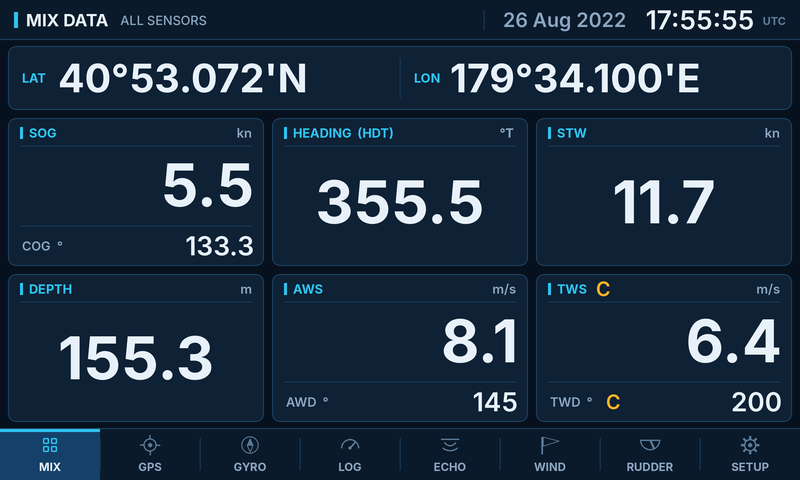

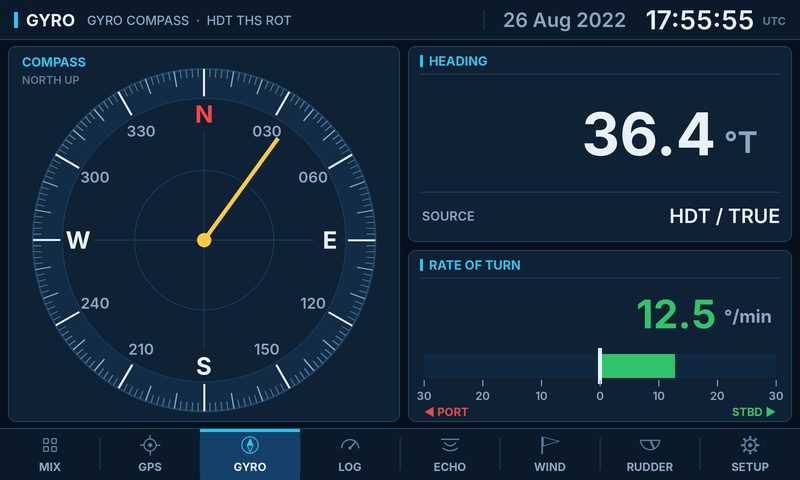

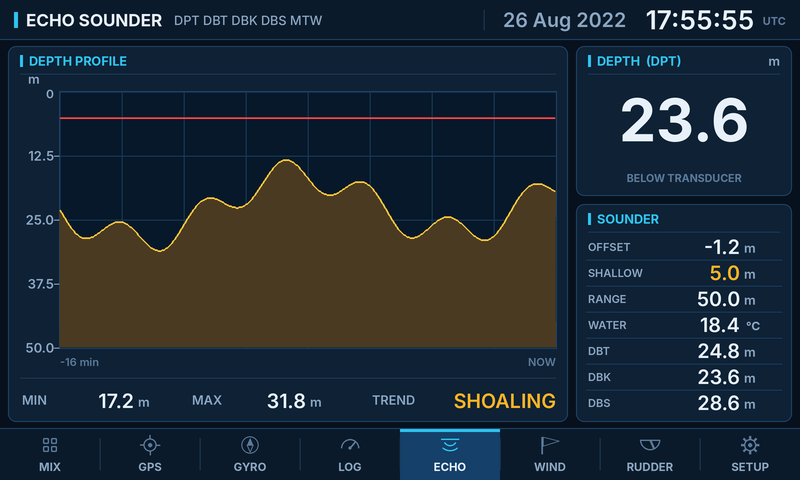

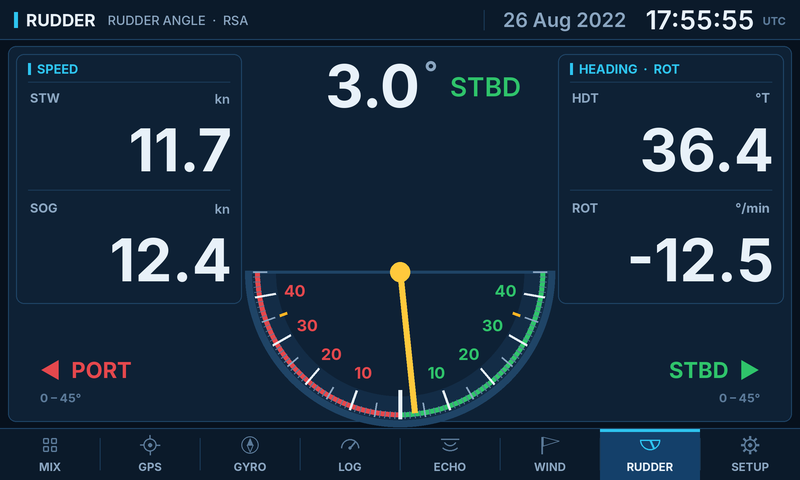

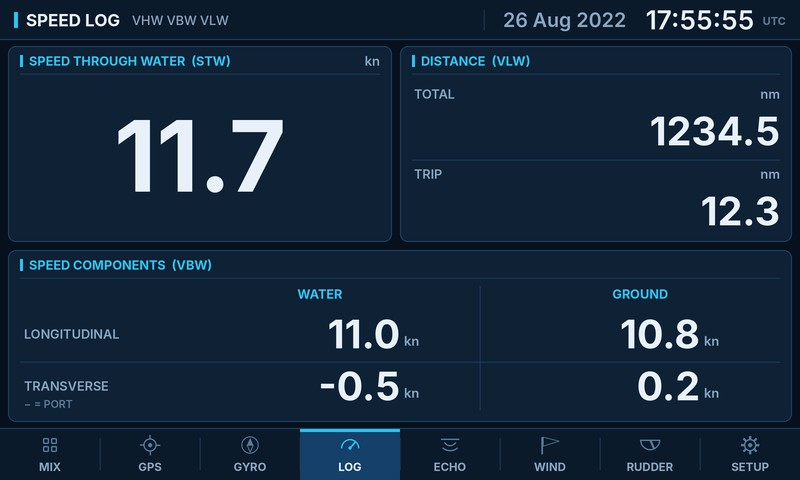

| Display | GPS, Gyro, Speed Log, Echo Sounder, Wind, Rudder |

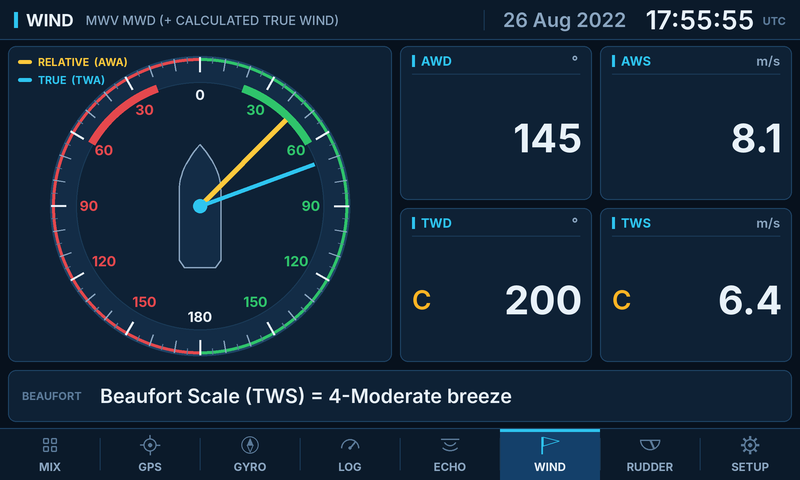

| Beaufort Wind Scale Indicator | Automatic calculation |
| Input | 3 X 5000V Independent galvanic isolated (RS232-RS422-RS485) |
| Input Speed | 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Input data | RMC, GGA, GNS, GSA, GSV, VTG, ZDA, RMB, HDT, THS, ROT, VBW, VLW, VHW, DPT, DBT, DBK, DBS, MTW, MWV, MWD, RSA |
| Display Type | Color LCD |
| Screen Size | 7″ |
| Brightness | 300nit – 0% to 100%, the interval of adjustment is 1% |
| Remote Brightness | Optional |
| Case-Dimensions | Metal – 250 x 180 x 55 mm |
