NTAC-22 NMEA to Anschutz Coursebus Converter
Overview

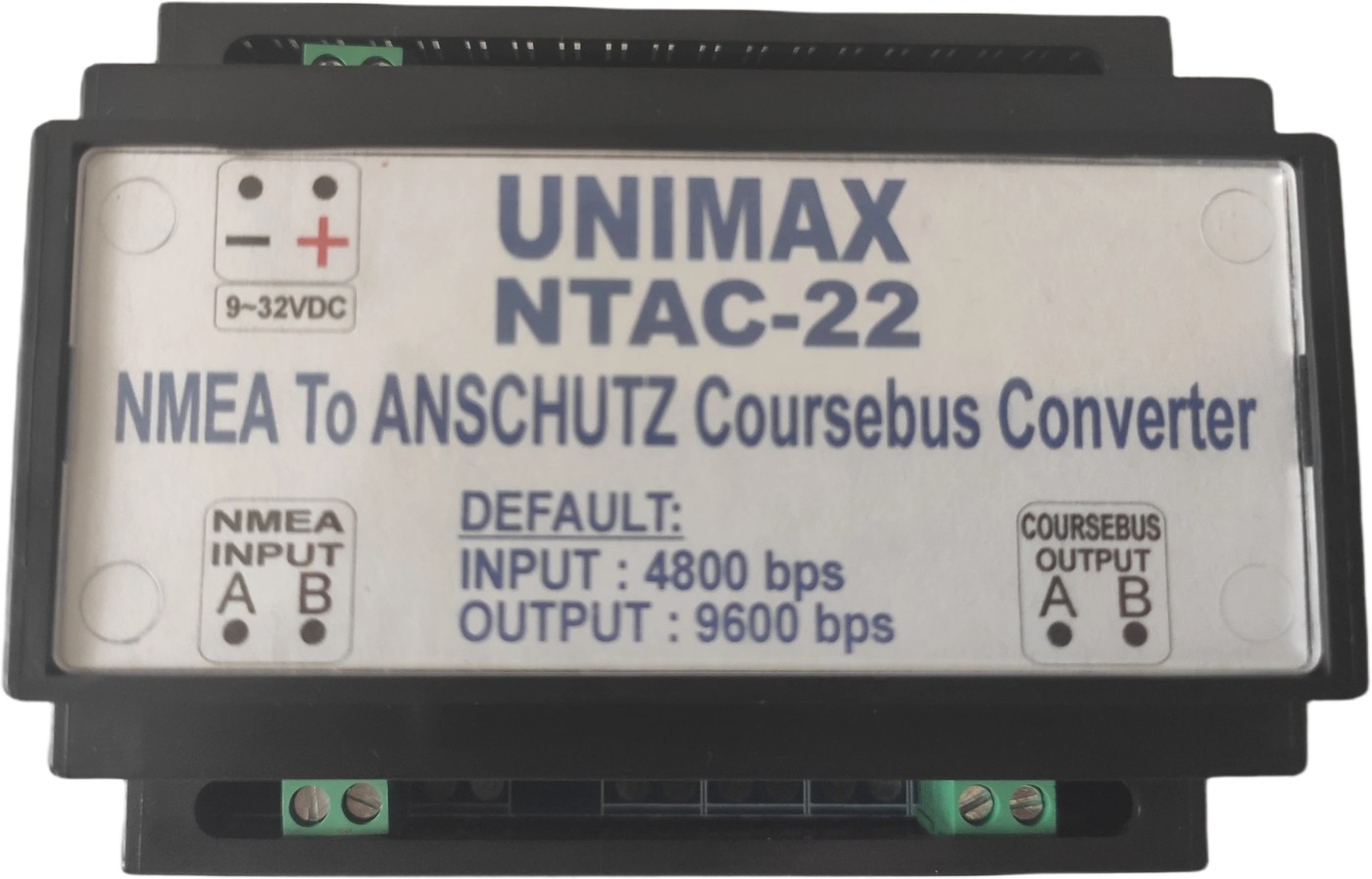

NMEA Anschutz converter is used to convert NMEA heading data to Anschutz course bus data format.
In the case of replacing the installed defective Anschutz gyro compass, by converting the NMEA data from the device to be installed to the Anschutz course bus format, you can quickly operate the repeaters and other devices using the Anschutz course bus protocol untouched. You do not have to pull cables and install new devices. In this way, the installed devices are not affected by the replacement. This saves time and costs.
The converter accepts HDT, ROT, THS telegrams to convert signal to Coursebus data. Default input speed is 4800bps, output speed is 9600bps. Different input-output speed options can be adjusted with DIP switches on the board.
The NTAC-22 can be powered within the range of 9~32 VDC. The nominal voltage of 24 VDC is advised for powering the device in normal operation. Power input port has a protection for incorrect polarity connection of the supplying voltage.
It supports STD-20 and STD-22 gyrocompass. The converter has been tested on STD-20 and STD-22 gyro systems.
The converter supports only RS-422 serial output. CAN bus output is not supported.
The converter works on more than 250 vessels.
Datasheet
Promo video
Technical specifications
| Supply Voltage | – 9-32VDC Power supply |
|---|---|
| Power Supply Protection | – Reversed polarity protection – Internal resettable fuse |
| Protocol | NMEA0183, IEC61162, Anschutz Coursebus |
| Input data | – $xxHDT, $xxROT, $xxTHS NMEA Data – Can be added according to the recommendation |
| Output data | – Anschutz Coursebus Data |
| Input | – 1 x 5000V Galvanic isolated Input |
| Output | – 2 x RS422 |
| Input Speed | – Configurable with DIP Switches 4800, 9600, 38400, 115200 bps |
| Output Speed | – Configurable with DIP Switches 4800, 9600, 38400, 115200 bps |
| Status LEDs | – NMEA Input – Power – System – Data Output |
| Connectors | – Screw type terminals |
| Case – Dimensions – Weight | – ABS DIN Rail Mount Box – Width: 105 mm – Depth: 86 mm – Height: 58 mm – 150gr |
